The Traffic Control Room: Reverse Proxy, Load Balancer, and API Gateway in the AI Era

Building a GenAI application starts with a model, but scaling it for production requires a sophisticated traffic management strategy. As we move from simple prompt-response interactions to complex Agentic AI workflows involving multiple microservices, vector databases, and external LLM providers, the roles of networking components become critical.

Many developers confuse the Reverse Proxy, the Load Balancer, and the API Gateway. While they share some features, in a high-stakes AI environment, they serve distinct and complementary roles.

Generated by AI

1. The Reverse Proxy: Your Security Guard

A Reverse Proxy sits in front of a web server and forwards client requests to it. It is the most basic layer of protection.

• When to use it: When you have a single backend server (e.g., a standalone GPU instance running an LLM).
• Key Roles: It handles SSL termination (encrypting and decrypting traffic), basic caching of model responses, and hides the identity of your internal servers to prevent direct attacks.
• AI Example: You are running a private instance of a 70B model on a single high-performance machine. You use a Reverse Proxy like Nginx to handle the HTTPS certificates and protect the raw IP of your expensive GPU hardware.

2. The Load Balancer: The Traffic Cop

Once your AI app gains traction, a single server is no longer enough. You need to scale horizontally. This is where the Load Balancer comes in.

• When to use it: When you have multiple instances of the same service.
• Layer 4 vs. Layer 7:
• Layer 4 (NLB): Operates at the transport level (TCP/UDP). It is incredibly fast and efficient because it doesn’t look at the data inside the packet. Best for ultra-low latency raw data streams.
• Layer 7 (ALB): Operates at the application level (HTTP/S). It can “see” the request and route traffic based on content, such as a specific URL path or a header.
• AI Example: You have five different worker nodes running inference. The Load Balancer ensures that if Node A is at 90 percent GPU utilization, the next incoming prompt is automatically sent to Node B, preventing a system crash.

3. The API Gateway: The Orchestrator

An API Gateway is the most “intelligent” of the three. It doesn’t just route traffic; it understands the business logic behind the requests.

• When to use it: When you are managing external APIs or a complex microservices architecture.
• Key Roles: Authentication, rate limiting (essential for controlling LLM token costs), request transformation, and logging.
• AI Example: You are building a multi-tenant AI SaaS. Your API Gateway verifies the user’s API key, checks if they have exceeded their monthly token quota, and then routes the request to the specific microservice (e.g., the Vector DB service or the Guardrail service).

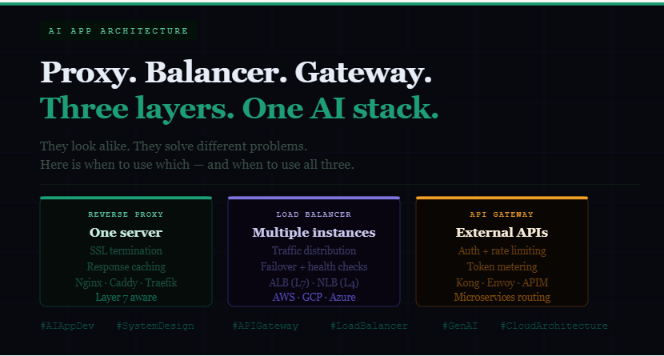

How They Layer: The AI Architecture Stack

These are not competitors; they are layers in a stack. A production-grade RAG (Retrieval-Augmented Generation) system often uses all three in a specific sequence:

1. CDN (Content Delivery Network): Sits at the absolute edge. It caches static assets (your UI) and handles the global distribution of content to reduce latency for users far from your servers.
2. Reverse Proxy / WAF: The first line of defense, filtering out malicious bot traffic and handling encryption.
3. Load Balancer: Distributes the clean traffic across your cluster of API Gateway instances.
4. API Gateway: Decides which user gets access to which model and applies the “business rules” of your AI app.

Why the Confusion? (Nginx vs. Kong vs. Envoy)

The confusion often stems from the fact that modern tools have “feature creep.”

• Nginx: Started as a web server and Reverse Proxy but can now act as a Load Balancer.
• Kong: Is a specialized API Gateway built on top of Nginx.
• Envoy: A high-performance proxy designed for “service mesh” architectures (cloud-native), often used as the underlying engine for modern Gateways.

📌 Key Takeaways

• Reverse Proxy protects and optimizes backend applications.
• Load Balancer distributes traffic across multiple instances for scalability and high availability.
• API Gateway manages APIs, authentication, rate limiting, and governance.
• CDN reduces latency by serving static content closer to users.
• Reverse Proxy, Load Balancer, and API Gateway are complementary components, not competing technologies.
• Modern AI applications often use all four layers together for enterprise-grade deployments.
• Understanding Layer 4 vs Layer 7 routing helps in selecting the right load-balancing strategy.

Final Verdict: When do you need what?

• Just testing a model? A simple Reverse Proxy is enough.
• Running a high-traffic inference cluster? You need a Load Balancer to keep your GPUs balanced.
• Selling an AI product with many users? You absolutely need an API Gateway to manage keys, billing, and security.

In the world of AI, where every millisecond of latency and every token costs money, getting your networking architecture right is the difference between a successful product and an expensive failure.
